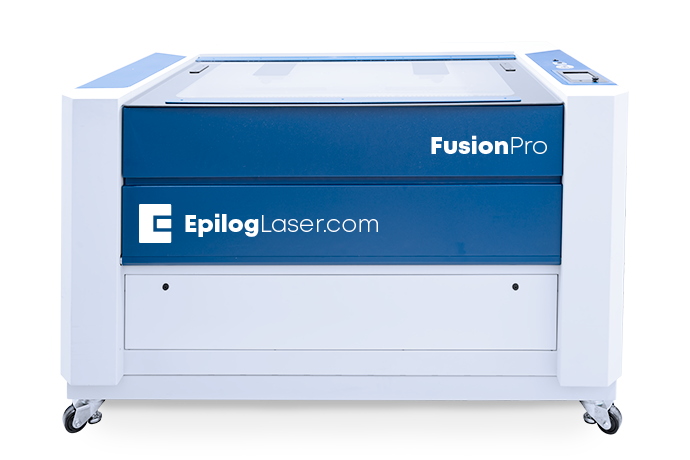

Epilog Fusion Pro 32 Laser Machines

  • Highest-Speed Engraving Over Largest Work Area
  • IRIS™ Camera Positioning
  • Touch Screen at the Laser
  • Engineered and Manufactured in the USA
  • Network Your Laser Across Your Business
  • SAFEGUARD™ Features
  • Air Assist and Compressor
  • Table Choices
  • Radiance™ Beam Enhancing Optics
  • CO2 Waveguide Laser Tubes by Epilog
  • 1 GB Memory in the Machine
  • Long-Life Steel Bearing



← 사진을 클릭하면 큰 사이즈로 보실 수 있습니다.

제품목록 온라인문의
사양
Work Area 32” x 20”
(812 x 508 mm)
Maximum Z-Depth 12.25” (311 mm)
LaserTube Wattage

CO2 - 50, 60, 80, or 120 watt •air-cooled, metal Waveguide tube, 10.6 micrometers

Fiber - 30 or 50 watt •air-cooled, includes collimator, 1065 nm, Beam quality: M2 < 1.1

Software Epilog Laser Software Suite: Laser Dashboard & Epilog Job Manager
Memory Multiple files up to 1 GB. Engrave any file size.
Operating Modes Optimized Raster, Vector, and Combined Modes
Motion Control High-speed, continuous-loop, brushless DC servo motors using rotary encoding technology for precise positioning
X-Axis Bearings Ground & polished stainless steel, Teflon-coated, self-lubricating bearings. Dual blocks on X-axis for greater rigidity
Belts Advanced B-style Kevlar Belts.
Resolution Fully-flexible and user-controlled from 75 – 1200 dpi
Speed and Power Computer-controlled in .001 increments up to 100%
Print Interface 10Base-T Ethernet, USB, or Wireless connection. Windows 7/8/10 compatible
Size (W x D x H) 54.6” x 34.2” x 42"
 1387 x 869 x 1067 mm
Weight 400 lbs (182 kg)
Electrical 110 to 240 volts, 50 or 60 Hz, single phase
Ventilation 400 CFM for primary exhaust port (upper port) and 400 CFM for downdraft exhaust port (lower port), totaling 800 CFM.
Exhaust Ports One output port
 4” (102 mm)
Safety Class 2 Laser Product – 1 mW CW Maximum 600 – 700 nm
